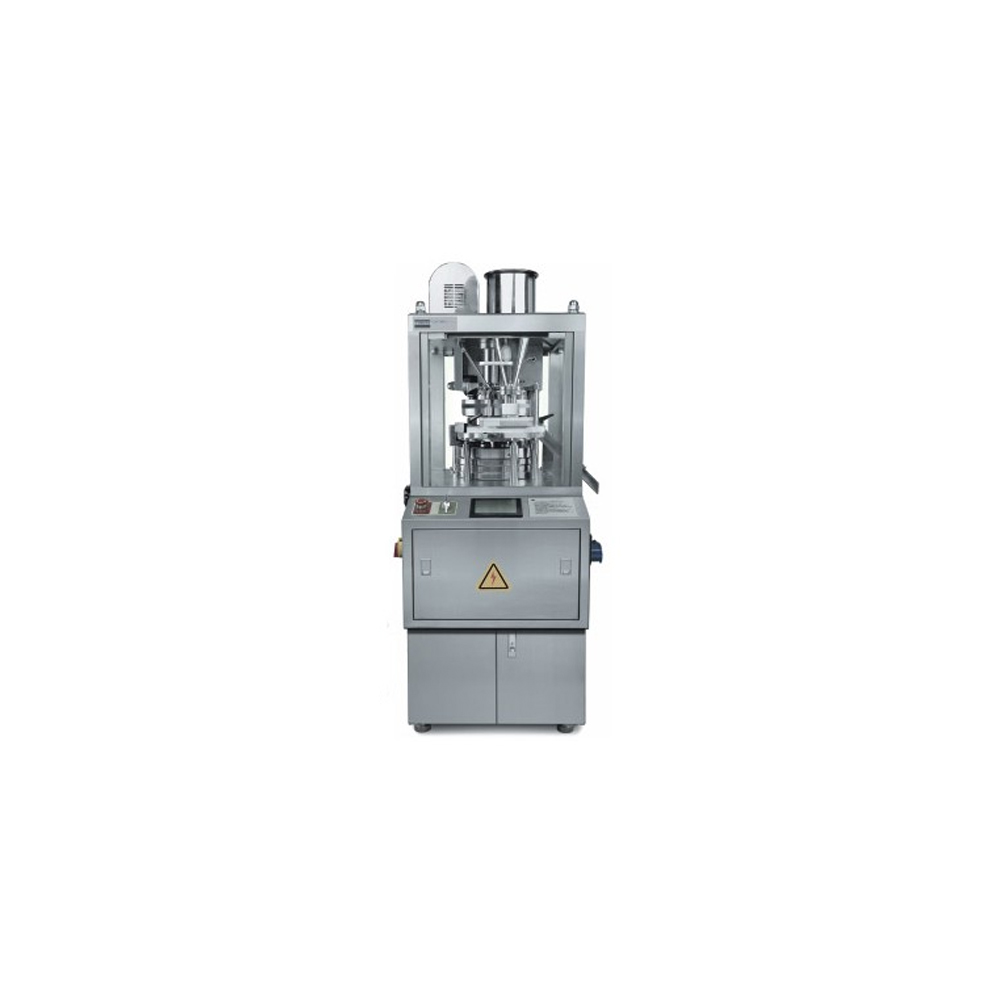

Rotary Tablet Press
The C&C800 series rotary tablet press is designed for producing tablets up to 25 mm in diameter. It is primarily used in the pharmaceutical industry but can also be utilized in chemical, food, electronics, and metallurgy industries. The press is capable of forming a wide range of tablet shapes from granulated materials, including flat cylindrical, profiled, and shaped tablets with bevels and scores on both sides.
GMP Certified
Quality Assured
ISO Compliant
International Standards
High Performance
Proven Results
Key Advantages
Accuracy: Tablet weight deviation ±1%. Maximum weight difference: <0.3g ±5%, 0.3g ±3%.
Components in contact with the product are made of AISI316L stainless steel.
Continuous performance control with speed maintenance function.
Automatic lubrication system and profiling tablet production.
Compatible with C&C200 dust remover and vacuum systems.
GMP-compliant, hermetically sealed working chamber.
Emergency stop functions for pressure overload and error alerts.
Ready to Get Started?
Contact our pharmaceutical equipment specialists for detailed specifications, pricing, and custom configuration options.
Technical Specifications
| Model | C&C800/C&C800A | |||
| Number of Stations | 8 | 10 | 14 | 16 |
| Main Pressing Force (kN) | 80 | |||
| Pre-Pressing Force (kN) | 15 | |||
| Maximum Tablet Diameter (mm) | 25 | 16 | 25 | 16 |
| Maximum Filling Height (mm) | 20 | 16 | 20 | 16 |
| Tablet Height (mm) | 0.5~8 | |||
| Punch Type | EU-D | EU-B | EU-D | EU-B |
| Length of Upper and Lower Punches (mm) | 133.6 | |||
| Matrix Diameter (mm) | 38.1 | 30.162 | 38.1 | 30.162 |
| Matrix Height (mm) | 23.81 | 22.225 | 23.81 | 22.225 |
| Productivity (tablets/hour) | 24,000 | 30,000 | 42,000 | 48,000 |
| Installed Power (kW) | 3 | |||
| Dimensions (mm) | 835x705x1650/835x705x1200 | |||
| Weight (kg) | 900 |
